XYZ CALCULATIONS

Measuring critical dimensions in all axes

Always with the priority of facilitating operations and procedures for the user, assist tools have been developed for critical dimensions options. Using SensoVIEW, critical dimensions such as angles, distances and diameters can be easily measured on a 3D topography measurement, a 2D profile measurement and a 2D section profile.

Critical Dimensions Analysis
Assist Tools Set

Useful assist
measurement tools

Assist tools are a quick and handy way to draw the most basic and primary forms (points, lines and circles) in selected rendering views to, later on, add the corresponding dimensions. It is an optional aid when drawing the measurement tools.

Measurement tools set

Multiple
measurement tools

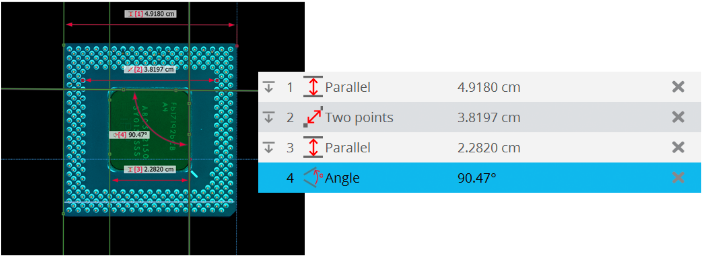

A complete set of tools ready to add the most essential dimensions when measuring critical dimensions (radiuses, angles, diameters, step heights and perpendicular & parallel distances). These tools will return a numerical value for a particular dimension.

Assist Tools Set

Useful assist
measurement tools

Assist tools are a quick and handy way to draw the most basic and primary forms (points, lines and circles) in selected rendering views to, later on, add the corresponding dimensions. It is an optional aid when drawing the measurement tools.

Measurement tools set

Multiple
measurement tools

A complete set of tools ready to add the most essential dimensions when measuring critical dimensions (radiuses, angles, diameters, step heights and perpendicular & parallel distances). These tools will return a numerical value for a particular dimension.

Adding Tolerances

TOLERANCES

Adding tolerances

Tolerances are available to provide a complete dimensional characterization for both contour and profiles. Users have two flexible options for setting tolerances: defining maximum and minimum values or establishing a reference value with a deviation.

2D CALCULATIONS

Automatic edge detection

The critical dimensions tools have an auto-adjustment feature. To activate it, the user just needs to right-click and drag over the point, line, or circle drawn in the scene to have it adjusted to the features of the sample. Regarding 2D images, the most suitable data channel can be chosen between Z data, stack, or color information.

automatic-edge-detection-sensoview-scaled

3D CALCULATIONS

Volume geometries

Our smart volume calculation allows the user to get the volume of a 3D topography. It does a smart segmentation based on thresholds applied in two profiles to obtain volume per each feature and total volume.

Volume calculation
