SensoVIEW

Powerful Analysis Software

SensoVIEW is an ideal software for a broad range of analysis tasks. It includes a comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements, allowing roughness or volume calculations and measuring critical dimensions (angles, distances, diameters) with a set of analysis tools.

SensoVIEW screen & topo

EASY TO USE

Simple yet powerful, designed for you

This dynamic software provided with the Sensofar systems offers a complete set of user friendly tools for displaying and analyzing measurements. The user is trained and guided through the 3D environment, delivering a unique user experience: Access to operators in just one-click; icons with eye-catching design; a better function understanding; and simultaneous 3D, 2D and profile views are just some of the key features of the SensoVIEW software.

SensoVIEW icon 1

Choose your
own view

3D and 2D interactive views provide multiple scaling, display and render options.

sensoview_processyourdata_icon2

Process
your data

Full set of operators to process the data information or generate alternative layers.

SensoVIEW icon 3

Interact with
analysis tools

Broad range of analysis tools for preliminary examination and analysis of 3D or 2D measurements.

SensoVIEW icon 4

Get your
results

Get a customizable report or export the 3D measurement data in multiple formats.

ISO PARAMETERS

Smart calculations tool for key parameters

SensoVIEW provides a specific step-guide to get surface texture parameters according to ISO 4287 and 25178 with just one click. It is the easiest way to fulfill with roughness & waviness ISO standards, simplifying the process of analyzing the measurement data.

ISO 4287 calculations

iso-4287-calculations

It automatically filters the primary profile according to ISO 4287 and ISO 4288, returning the roughness (Rx) and waviness (Wx) parameters. The calculation of the parameters consists of a set of predefined operators, filters (F-Operator, S- Filter and L- Filter) and additional settings.

ISO 25178 calculations

iso-25178-calculations

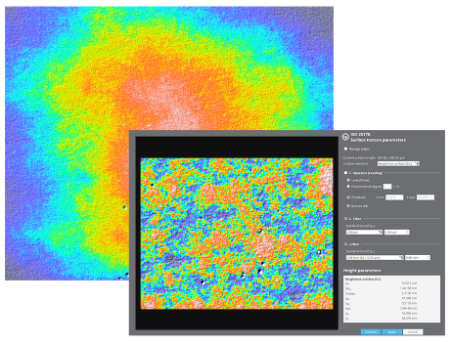

Designed for users without a deep knowledge of ISO filters, who can now extract this information, by simply selecting the type of surface being analyzed. This operator filters the surface according to ISO 25178, returning the surface texture parameters. The users only have to select its desirable final cut-off.

ISO 4287 calculations

It automatically filters the primary profile according to ISO 4287 and ISO 4288, returning the roughness (Rx) and waviness (Wx) parameters. The calculation of the parameters consists of a set of predefined operators, filters (F-Operator, S- Filter and L- Filter) and additional settings.

iso-4287-calculations
iso-25178-calculations

ISO 25178 calculations

Designed for users without a deep knowledge of ISO filters, who can now extract this information, by simply selecting the type of surface being analyzed. This operator filters the surface according to ISO 25178, returning the surface texture parameters. The users only have to select its desirable final cut-off.

ISO STANDARD

Surface texture characterization

The ISO 25178: Geometric Product Specifications (GPS) – Surface texture: areal standard is an International Organization for Standardization collection of international standards relating to the analysis of 3D areal surface texture. It is the first international standard that takes into account the specification and measurement of 3D surface texture, and in particular defines 3D surface texture parameters and the associated specification operators.

Surface parameters are calculated according to ISO 25178:

   Height parameters (height values along the Z axis)
   Spatial parameters (spatial periodicity of the data)
   Hybrid parameters: (spatial shape of the data)
   Functional parameters (parameters calculated from the material ratio curve, surface into motifs, valleys and hills)

ISO Surface Parameters

MEASUREMENT DISPLAY

The most perceptive visualization of your topographies

Image control options are always in continuous development for an excellent fit to all sample types and customer needs. A full range of image processing settings are included in each of the rendering visualizations choices and presented together with scale options for a better adjustment.

Auto-managed rendering views

Five smart visualization modes (false color, stack, stack & false color, true color or directional luminance) are always within reach in the main screen.

Rendering views

Auto-managed rendering views

Five smart visualization modes (false color, stack, stack & false color, true color or directional luminance) are always within reach in the main screen.

Rendering views

Automatic flow settings

Users will be free and able to control different parameters like scale range, Z value, stack, color and shadow settings.

AWB example

Profile tool

For displaying images and 3D measurements, several profile options are available: horizontal, vertical, circular, top/bottom, free or average profile. The profile data can be analyzed using all the critical dimensions tools.

Profile and 2D Color of a watch

Automatic flow settings

Users will be free and able to control different parameters like scale range, Z value, stack, color and shadow settings.

AWB example

Profile tool

For displaying images and 3D measurements, several profile options are available: horizontal, vertical, circular, top/bottom, free or average profile. The profile data can be analyzed using all the critical dimensions tools.

Profile and 2D Color of a watch

RESULTS

Customizable reports for more flexible results presentations

With the possibility to choose from different report templates, the user can configure every section to fit as much as possible to their requirements. A flexible way to obtain clear and well-structured reports for each measurement, showing the acquisition information, 3D data, a 2D profile and all the ISO parameters, among others.

Reports A4

3D exportable in multiple formats

Several options are available for managing the output files. When saving a measurement in SensoVIEW, the raw data is always preserved. The measurement surface data can be exported in *.dat, *.stl, *.pcl, and *.x3p formats.

Reports A4

3D exportable in multiple formats

Several options are available for managing the output files. When saving a measurement in SensoVIEW, the raw data is always preserved. The measurement surface data can be exported in *.dat, *.stl, *.pcl, and *.x3p formats.
