XYZ CALCULATIONS

Measuring critical dimensions in all axes

Always with the priority of facilitating operations and procedures for the user, assist tools have been developed for critical dimension options. With SensoVIEW, critical dimensions such as angles, distances, diameters can be easily measured and highlight features with a measurements tool.

Critical Dimensions Analysis

3D CALCULATIONS

Volume geometries

Volume calculation allows the user to get the volume of a 3D topography region. Two modes are possible: thresholding (defining the minimum and maximum Z limits) or leveling (defining a ROI by circle, polygonal or rectangular geometries).

Form Removal

3D CALCULATIONS

Volume geometries

Volume calculation allows the user to get the volume of a 3D topography region. Two modes are possible: thresholding (defining the minimum and maximum Z limits) or leveling (defining a ROI by circle, polygonal or rectangular geometries).

Form Removal

2D CALCULATIONS

Measuring critical dimensions

Measuring specific features like points, distances, radiuses, diameters or angles on a 3D topography measurement, a 2D profile measurement, a profile of a 2D section through a 3D measurement and even on the histogram of a 3D measurement.

Critical dimensions 2d CD calculations
Assist Tools Set

Useful assist
measurement tools

Assist tools are a quick and handy way to draw the most basic and primary forms (points, lines and circles) in selected rendering views to, later on, add the corresponding dimensions. It is an optional aid when drawing the measurement tools.

Measurement Tools Set

Multiple
measurement tools

A complete assortment of tools ready to add the most essential dimensions when measuring critical dimensions (radiuses, angles, diameters, step heights and perpendicular & parallel distances). These tools will return a numerical value for a particular dimension.

Automatic edge detection SensoVIEW

Automatic edge detection

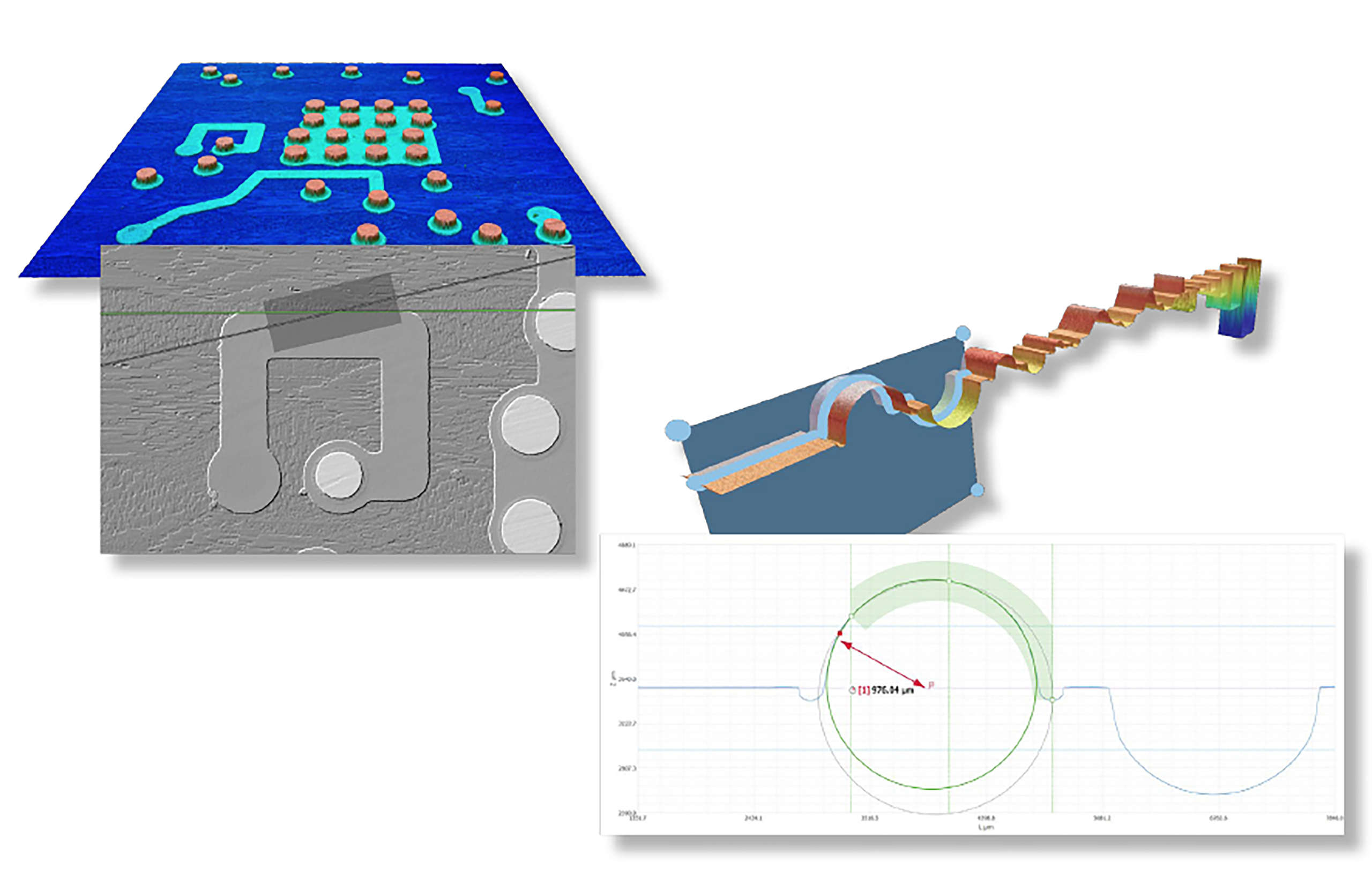

Auto-adjusting the position of the critical dimensions, the user just needs to right-click and dragg over the basic items drawn in the scene (point/line/circle) and it will adjust according to the sample’s features and the active critical dimension.

Assist Tools Set

Useful assist
measurement tools

Assist tools are a quick and handy way to draw the most basic and primary forms (points, lines and circles) in selected rendering views to, later on, add the corresponding dimensions. It is an optional aid when drawing the measurement tools.

Measurement Tools Set

Multiple
measurement tools

A complete assortment of tools ready to add the most essential dimensions when measuring critical dimensions (radiuses, angles, diameters, step heights and perpendicular & parallel distances). These tools will return a numerical value for a particular dimension.

Automatic edge detection SensoVIEW

Automatic edge detection

Auto-adjusting the position of the critical dimensions, the user just needs to right-click and dragg over the basic items drawn in the scene (point/line/circle) and it will adjust according to the sample’s features and the active critical dimension.
