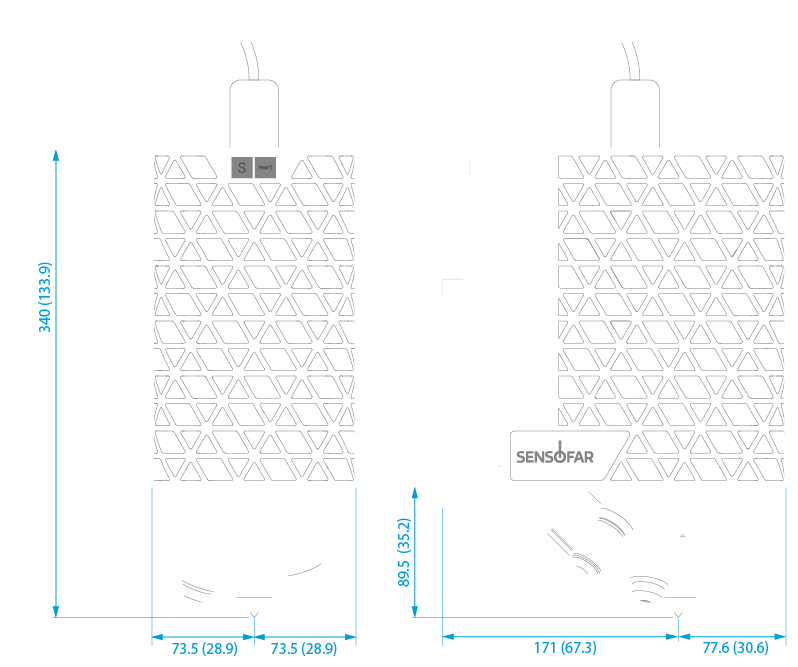

Dimensions
mm (inches)
Weight: 5.3 Kg (11.7 lbs)
Technologies
Light sources
580 nm
460 nm
Objective lenses
| MAG | 5X | 10X | 20X | 50X | 100X |
| NA | 0.15 | 0.30 | 0.45 | 0.80 | 0.90 |
| WD (mm) | 20 | 15.8 | 3.0 | 1.0 | 1.00 |
| FOV1 (µm) | 2826 x 2826 | 1413 x 1413 | 707 x 707 | 283 x 283 | 141 x 141 |
| Spatial sampling2 (µm) | 2.76 | 1.38 | 0.69 | 0.27 | 0.14 |
| Optical resolution3 (µm) | 0.94 | 0.47 | 0.31 | 0.18 | 0.16 |
| Measurement noise4 (nm) | 120 | 45 | 10 | 4 | 3 |
| Maximum slope5 (º) | 9 | 17 | 27 | 53 | 64 |
1 Maximum field of view with 2/3” camera and 0.25X optics. 2 Pixel size on the surface. 3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for blue LED in brightfield objectives. 4 Values are assessed through repeated measurements on a reference standard performed under environmentally controlled conditions in accordance with Sensofar’s metrology protocols. 5 On smooth surfaces. Up to 72° on rough surfaces. Other objectives are available.
| MAG | 2.5X TI | 5X MC | 10X MC | 10X MR | 20X MC | 20X MR | 50X MR | 100X MR |
| NA | 0.075 | 0.14 | 0.10 | 0.28 | 0.10 | 0.38 | 0.50 | 0.70 |
| WD (mm) | 10.3 | 13.0 | 25.0 | 8.0 | 16.7 | 6.0 | 3.6 | 2.0 |
| FOV1 (µm) | 5652 x 5652 | 2826 x 2826 | 1413 x 1413 | 1413 x 1413 | 707 x 707 | 707 x 707 | 283 x 283 | 141 x 141 |
| Spatial sampling2 (µm) | 5.52 | 2.76 | 1.38 | 1.38 | 0.69 | 0.69 | 0.27 | 0.13 |
| Optical resolution3 (µm) | 2.34 | 1.25 | 1.75 | 0.63 | 1.75 | 0.46 | 0.35 | 0.25 |
| System noise4 (nm) | CSI <1 nm ePSI <0.1 nm | |||||||
| Maximum slope5 (º) | 4 | 8 | 6 | 16 | 6 | 22 | 30 | 44 |
1 Maximum field of view with 2/3” camera and 0.25X optics. 2 Pixel size on the surface. 3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Spatial sampling could limit the optical resolution for interferometric objectives. Values for white LED in interferometric objectives. 4 Values are assessed through repeated measurements on a reference standard performed under environmentally controlled conditions in accordance with Sensofar’s metrology protocols. 5 On smooth surfaces.
Z performance
| Z | LINEAR STAGE |
| Vertical range | 20 mm (0.79″) |
| Resolution | 5 nm |
Accuracy and repeatibility
| STANDARD | VALUE | LINEAR SCANNER1 | TECHNIQUE |
| Step Height (H) | <10 | U= (0.005 + H/50) μm σ < 10 nm |
Confocal, AiFV & CSI |
| >10 | U = (0.120 + H/120) μm σ < 10 nm |
Confocal, AiFV & CSI |
1 Values obtained in a VC-E vibration environment. Objective used for Confocal and Ai Focus Variation 50X 0.80 NA and for CSI 50X 0.55NA. Resolution 1220×1024 pixels. Uncertainty (U) according to ISO/IEC guide 98-3:2008 GUM:1995, K=1,96 (level of confidence 95%). σ according to 25 measures. For steps smaller than 5 μm, σ < 5 nm.
