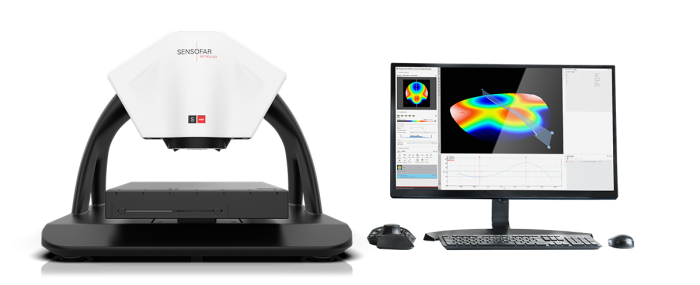

S wide complete system
logo-sensoscan-s-wide

SensoSCAN S wide

Clear, intuitive and
user-friendly interface

Software drives the system with its clear, intuitive and user-friendly interface. The operator is guided through the 3D environment, delivering a unique user experience.

GUI SensoSCAN S wide
logo-sensoscan-s-wide

SensoSCAN S wide

Clear, intuitive and
user-friendly interface

Software drives the system with its clear, intuitive and user-friendly interface. The operator is guided through the 3D environment, delivering a unique user experience.

GUI SensoSCAN S wide
Topography tablet 2D False Color

SensoSCAN S wide modules

Extended measurements

SensoSCAN’s extended measurements module allows the user to easily define the measurement layout. Wide areas of up to 450 million pixels are possible.

SensoSCAN S wide modules

Extended measurements

SensoSCAN’s extended measurements module allows the user to easily define the measurement layout. Wide areas of up to 450 million pixels are possible.

Topography tablet 2D False Color

SensoSCAN S wide modules

Automating
procedures

Automated measurements are obtained using the Recipes tool, which is a customizable facility for creating quality control procedures. It is extremely easy to define procedures for automating measurements with sample identification and automatic fiducials recognition.

GUI SensoSCAN S wide MMR

SensoSCAN S wide modules

Automating procedures

Automated measurements are obtained using the Recipes tool, which is a customizable facility for creating quality control procedures. It is extremely easy to define procedures for automating measurements with sample identification and automatic fiducials recognition.

GUI SensoSCAN S wide MMR
logo-sensoview_sneox_100x100

SensoVIEW

Powerful advanced analysis software

3D and 2D interactive views provide multiple scaling, display and render options. A comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements is provided. Critical dimensions, angles, distances, diameters can be measured and features highlighted with new annotation tools.

chip topography and profile 3d-color
logo-sensoview_sneox_100x100

SensoVIEW

Powerful advanced analysis software

3D and 2D interactive views provide multiple scaling, display and render options. A comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements is provided. Critical dimensions, angles, distances, diameters can be measured and features highlighted with new annotation tools.

chip topography and profile 3d-color
SensoVIEW operators

SensoVIEW

Sequential operators

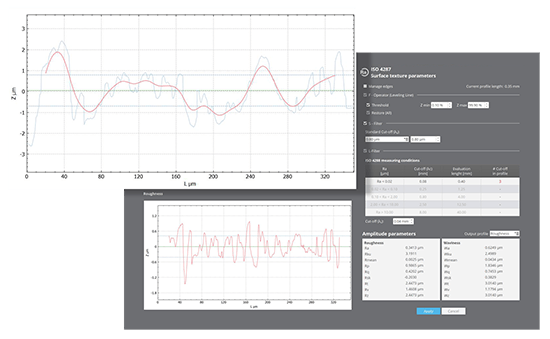

A comprehensive set of operators provides the opportunity to retouch data points, restore non-measurable data, remove form (plane, sphere, polynomial), apply a range of filters and/or generate alternative layers by cropping, subtracting or extracting a profile. It is also possible to create analysis templates to apply pre-determined filter and operator configurations to repetitive measurements.

SensoVIEW

Sequential operators

A comprehensive set of operators provides the opportunity to retouch data points, restore non-measurable data, remove form (plane, sphere, polynomial), apply a range of filters and/or generate alternative layers by cropping, subtracting or extracting a profile. It is also possible to create analysis templates to apply pre-determined filter and operator configurations to repetitive measurements.

SensoVIEW operators

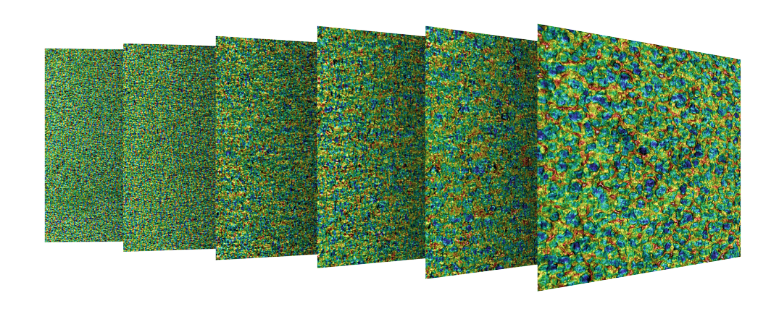

Additive Manufacturing 2D Roughness
add-manufacturing-sensopro-statistics
logo-sensopro_sneox_100x100
logo-sensopro_sneox_100x100

SensoPRO

Rapid quality control

It has never been so easy to perform rapid quality control on a production line. Thanks to SensoPRO, the operator only needs to load the sample and follow guided instructions to get “pass or fail” criteria. Plug-in-based data analysis algorithms provide a high degree of flexibility.

Additive Manufacturing 2D Roughness
logo-sensopro_sneox_100x100

SensoPRO

Rapid quality control

It has never been so easy to perform rapid quality control on a production line. Thanks to SensoPRO, the operator only needs to load the sample and follow guided instructions to get “pass or fail” criteria. Plug-in-based data analysis algorithms provide a high degree of flexibility.

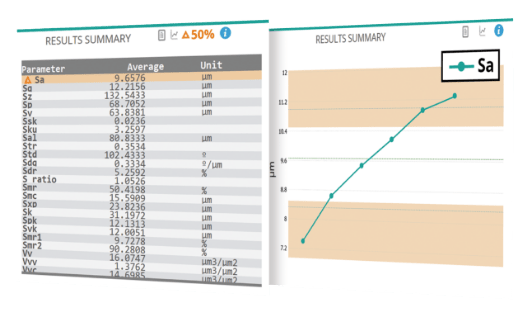

add-manufacturing-sensopro-statistics

Plugins

logo-sensomap_sneox_100x100

SensoMAP

Advanced software package optionally available

SensoMAP, based on Mountains technology from Digital Surf, is an extremely powerful tool for analysis and reporting. SensoMAP software is completely modularly adaptable to customer requirements. Two levels (standard and premium) and several modules (2D, 3D or 4D modules, Advanced Contour, Grains & Particles, Statistics and Stitching) are available.

Sreenshot SensoMAP 8
logo-sensomap_sneox_100x100

SensoMAP

Advanced software package optionally available

SensoMAP, based on Mountains technology from Digital Surf, is an extremely powerful tool for analysis and reporting. SensoMAP software is completely modularly adaptable to customer requirements. Two levels (standard and premium) and several modules (2D, 3D or 4D modules, Advanced Contour, Grains & Particles, Statistics and Stitching) are available.

Sreenshot SensoMAP 8

SensoMAP modules

4D Series Analyze surface evolution with respect to time, temperature, magnetic field or another dimension
Contour Basic geometric dimensioning & tolerancing of contour profiles and horizontal contours extracted from images
Advanced contour Advanced dimensioning and tolerancing, DXF CAD compare, Gothic arch
Advanced profile Advanced profile filtering, fractal and Fourier analysis, statistical analysis of series of profiles
Advanced topography Advanced studies, parameters & filters for 3D (“areal”) surface texture analysis
Automotive Assess functional performance with a full set of 2D parameters developed by the automotive industry
Fourier & Wavelets FFT-based texture analysis, advanced FFT filtering, multi-scale analysis by wavelets
Particle Analysis A comprehensive toolset for detecting and analyzing particles, pores, grains, islands etc. on structured surfaces
Shell Extension Freeform surface management, complex shape analysis, high quality 3D visualization
Scale-sensitive fractal analysis Implements a multi-scale analysis based on length-scale or area-scale analyses (formerly in Sfrax software)
Statistics Automated statistics for multiple data populations, process capability
Surface stitching Increase profilometer range. Use stitching to expand range of all axes (including Z) and overcome instrument limitations.
Lead (Twist) Analysis 2nd generation lead (twist) analysis for the automotive industry
