Stand structure

S neox design is ideal for obtaining a fast, noninvasive assessment of the micro- and nanogeometry of technical surfaces in multiple configurations. S neox provides the flexibility, durability and efficiency required from the standard setup for R&D and quality inspection laboratories to sophisticated, customized solutions for online process controls, measuring samples up to 300×300 mm2 and maximum height up to 350 mm. The S neox 3D optical profiler is a complete tool.

S neox 0.65X complete

Sensofar’s 0.65X Michelson

The S neox continues to be a pioneer in versatility. This time, by combining a proprietary 0.65X Michelson objective and a high performance XY stage to fulfill a single purpose: to measure flatness in a fast and accurate way.

Measuring flatness with high lateral and vertical resolution

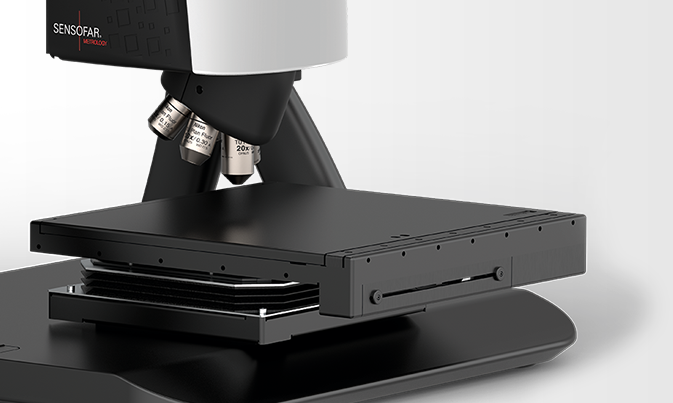

Motorized tip-tilt

The motorized tip-tilt has been designed to automatically level the sample in less than 3s. This device reduces sample preparation time, and allows sample leveling in multiple positions for automated applications. The auto-tilt function can be used with all imaging techniques

Watch our tutorial video to learn more

Motorized Tip-Tilt
Design

Motorized nosepiece

The motorized nosepiece can hold up to six objectives simultaneously, including brightfield and interferometry objectives. The SensoSCAN software handles the motorized change automatically and corrects automatically any possible parfocality adjustment.

Motorized nosepiece

The motorized nosepiece can hold up to six objectives simultaneously, including brightfield and interferometry objectives. The SensoSCAN software handles the motorized change automatically and corrects automatically any possible parfocality adjustment.

Ring light

Ring light

The Ring light is based on an LED ring for illuminating samples in a uniform and efficient way. It is mounted above and around the objective, the ring light provides increased signal for the Ai Focus Variation technique. This ensures proper illumination at the focal plane.

s neox five axis rotational stage

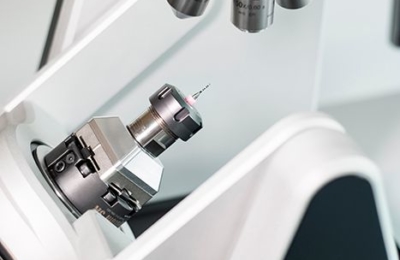

Rotational stage

The Five Axis rotational stage consists of a high-precision motorized rotating A axis with 360º of endless rotation, 10 arc sec positioning repeatability, a motorized B axis, -30º to 110º, 0.5 arc sec resolution, with limit switch. It is equipped with a System3R clamping system and everything is fully integrated into the S neox design.

Rotational stage

The Five Axis rotational stage consists of a high-precision motorized rotating A axis with 360º of endless rotation, 10 arc sec positioning repeatability, a motorized B axis, -30º to 110º, 0.5 arc sec resolution, with limit switch. It is equipped with a System3R clamping system and everything is fully integrated into the S neox design.

Insert holder

The insert holder is an optional accessory designed to position cutting tools in the precise location needed for measurement. It is compatible with all insert models currently on the market.

insert-holder
