Automated acquisition

This new feature vastly simplifies the data acquisition process. By placing the sample on the desired position, focusing it and selecting 3D auto function, the SensoSCAN software automatically determines the correct illumination (light) and the appropriate measurement range, and then performs the chosen measurement type. A quality result can thus be obtained within just a few seconds.

Multiple powerful

acquisition settings

Numerous acquisition parameters can be adapted to best suit the intended measurement. For example, various autofocus settings help to reduce the acqui-sition time, multilevel light strategies help improve the illumination of complex 3D structures and selectable Z-scan options also provide an opportunity to optimize the acquisition for varying 3D surfaces. All acquisition parameters can be saved as a template for re-use individually (SMR) or for repetitive measurements (MMR).

photoSurface_SlynxInteractive

Interactive

analysis tools

3D and 2D interactive views provide multiple scaling, display and render options. A comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements is provided. Dimensions, angles, distances, diameters can be measured and features highlighted with new critical dimensions tools. All of these features make the new SensoSCAN an ideal software package for a broad range of analysis tasks. For applications requiring a more complete analysis suite, advanced analysis software packages are optionally available, SensoMAP and SensoPRO.

ISO

parameters

SensoSCAN is compliant with ISO 25178. A complete selection of ISO 3D areal surface texture parameters is available: height, spatial, hybrid, functional and volumetric parameters.

photoSoftware_ISO
chip topography and profile 3d-color
logo-sensoview_sneox_100x100

SensoVIEW

Powerful Analysis Software

SensoVIEW is an ideal software for a broad range of analysis tasks. It includes a comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements, allowing roughness or volume calculations and measuring critical dimensions (angles, distances, diameters) with a set of analysis tools.

logo-sensopro_sneox_100x100

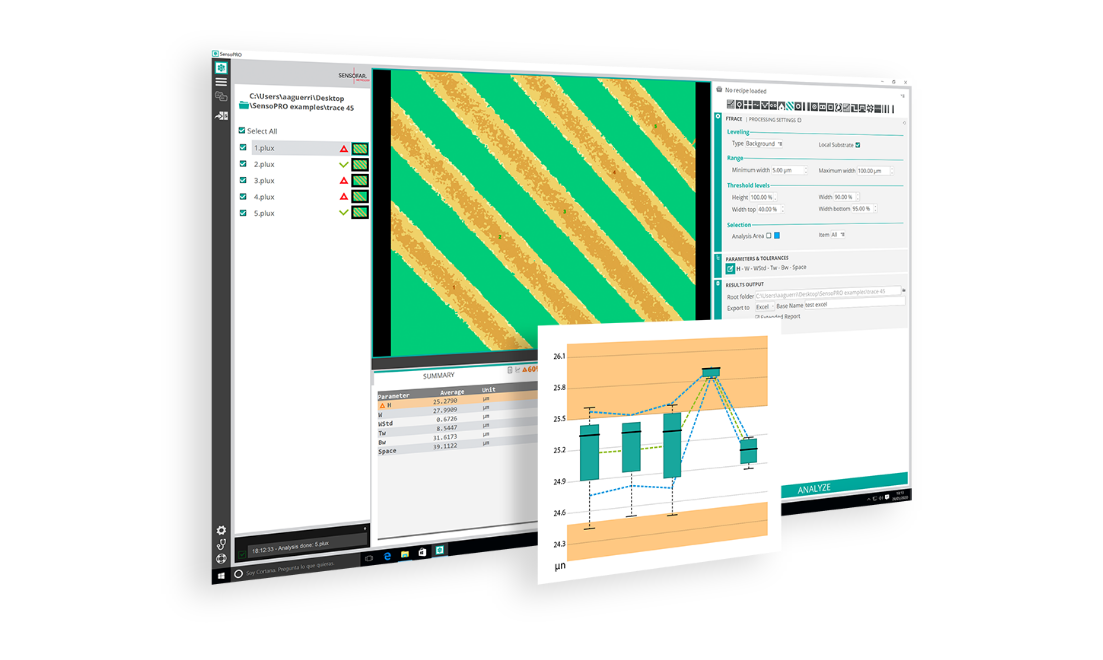

SensoPRO

Rapid Quality Control

It has never been so easy to perform rapid quality control in a production line. Thanks to SensoPRO, a production line operator only needs to load the sample and follow guided instructions to get a pass/fail report. Plug-in-based data analysis algorithms provide a high degree of flexibility. New modules can be easily customized to other industry needs.

SensoPRO software
logo-sensomap_sneox_100x100

SensoMAP

Advanced Analysis Software

SensoMAP, based on Mountains technology from Digital Surf, is an extremely powerful tool for analysis and reporting. SensoMAP software is completely modularly adaptable to customer requirements. Two levels (standard and premium) and several modules are available.

Sreenshot SensoMAP 8
