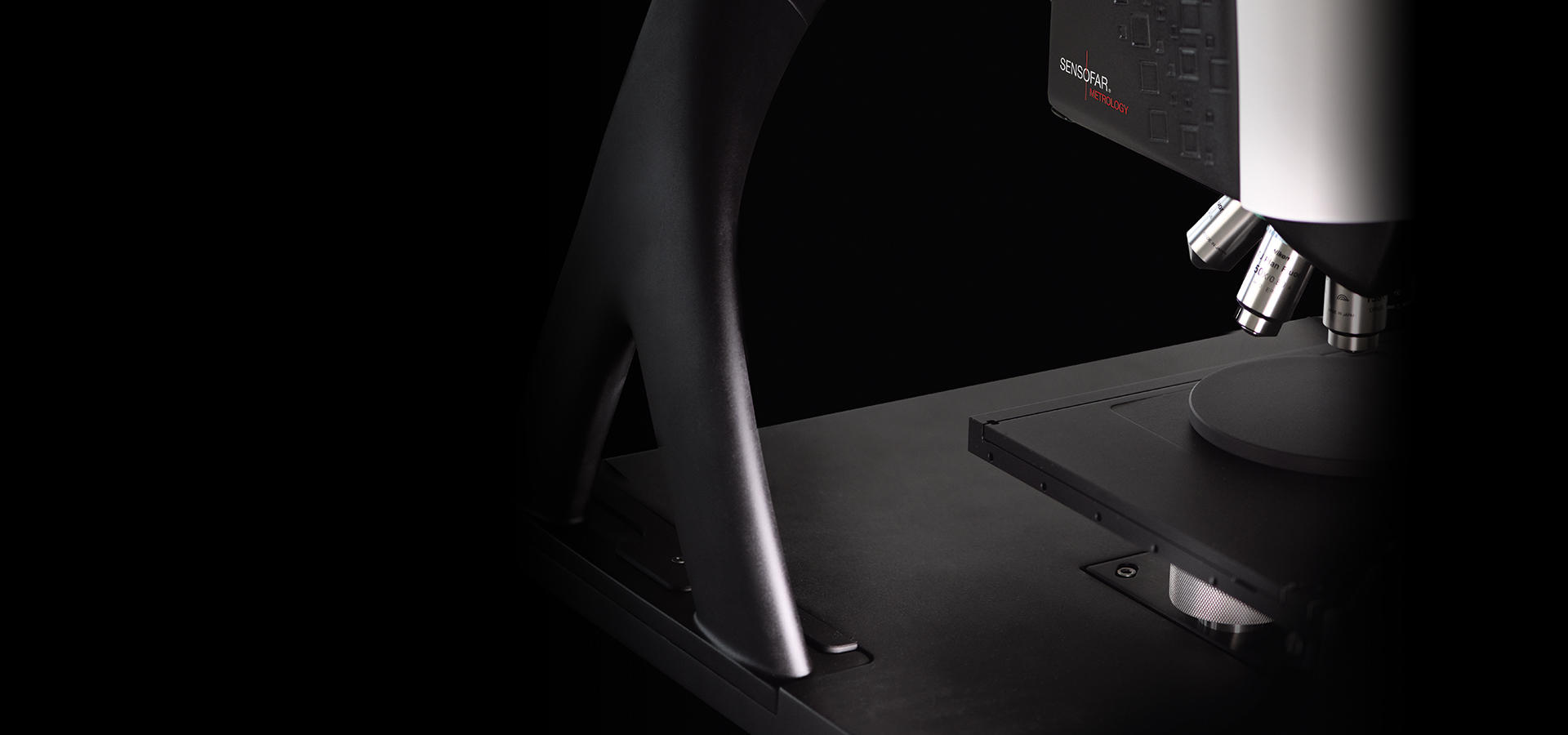

The new S neox outperforms existing
optical 3D profiling microscopes in
terms of performance, functionality,
efficiency and design, providing
Sensofar with a class-leading areal
measurement system.

Topography in a quality process

Faster than ever

Everything is faster than before with new smart and unique algorithms and a new camera. Data acquisition is taken at 180 fps. Standard measurement acquisition is 5X faster than before. Making the S neox the fastest areal measurement system in the market.


Sensofar is continuously working to provide the most incredible experience to our customers. With the fifth generation of the S neox systems, the goal has been to make it easy to use, intuitive and faster. Even if you are beginner user, the system can be managed with just one click. Software modules have been created to adapt the system to the user requirements.

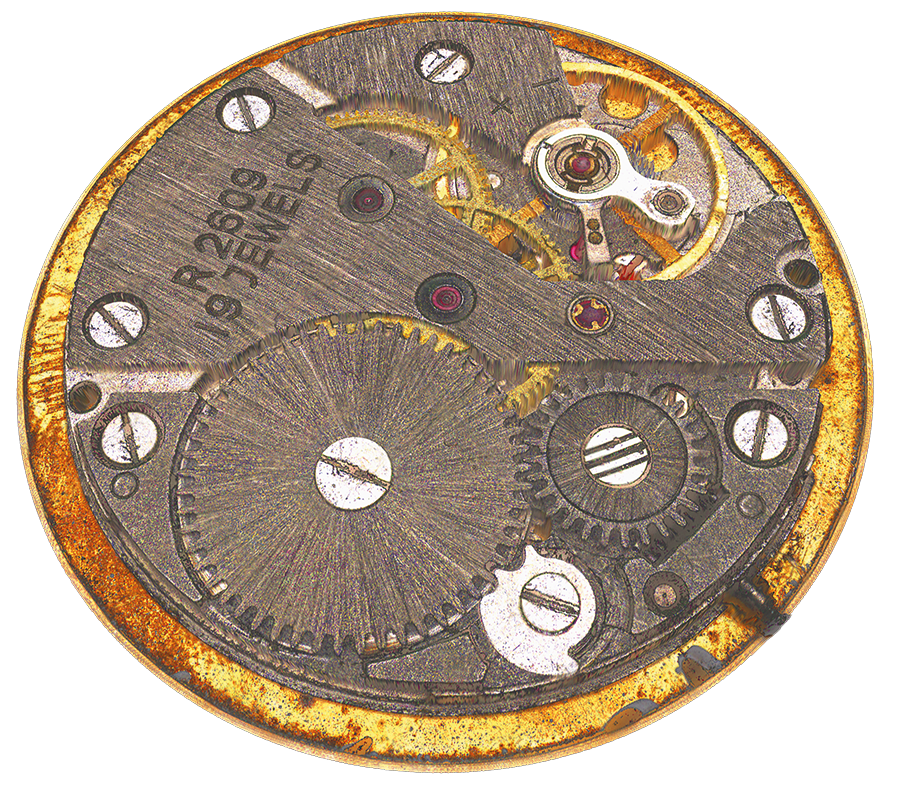

Example of an acquisition

Versatile system

Quality Control

Quality Control

Automated modules have been created
to facilitate all QC procedures. Ranging
from operator access rights control, recipes,
compatibility to barcode/QR readers, and
customized plugins from our proprietary
SensoPRO software to generate pass/fail
reports. Our optimized solutions are able
to work in QC environments due to their
flexibility and easy-to-use interface, which
can be programmed to work 24/7.
Surface finish measures have never been so easy.

Research & Development

Research & Development

With Sensofar’s 3-in-1 approach –a single
click in SensoSCAN switches the system to
the best technique for the task at hand. The
three measurement techniques found in the
S neox sensor head –Confocal, Interferometry,
Ai Focus Variation– each contribute critically
to the versatility of the system and help to
minimize undesirable compromises in the
data acquisition. The S neox surface profilometer
is ideal for all lab environments,
without limitations.

3-in-1 technologies


Ai Focus VariationNEW!

Active illumination Focus Variation vertically scans either optics (with very low depth-of-field) or the sample to obtain a continuous set of images of the surface. An algorithm determines which points in each frame are in focus, and an entire image is built up using all in-focus points from all frames. It has been improved with the use of active illumination to get more reliable focus location even on optically smooth surfaces.



The imaging technique included by the Confocal microscopes, utilizes an aperture at the confocal plane of the objective. Out-of-focus light is thus prevented from entering the imaging system and only the in-focus plane on the sample is captured. 2D profiles and 3D surface images can be captured by scanning the aperture mechanically or digitally.



Optical Interferometry makes use of the optical path difference between light reflected in the two arms of the interferometer (reference and sample) to yield an spatial interference pattern (interferograms) that contains information on the surface topology of the sample. Various variations of the approach can be used for particular applications.

Thin film

Thin film measurement technique measures the thickness of optically transparent layers quickly, accurately, non-destructively and requires no sample preparation. The profilometer acquires the reflectance spectrum of the sample in the visible range, and is compared with a simulated spectra calculated by the software, with layer thickness modification until the best fit is found. Transparent films from 50 nm to 1.5 μm can be measured in less than one second. Sample evaluation spot diameter is dependent on the objective magnification which can be as low as 0.5 μm and up to 40 μm.

High resolution

Vertical resolution is limited by the instrument noise, which is fixed for Interferometry, but dependent of the numerical aperture for Confocal. Sensofar proprietary algorithms deliver nanometer level system noise for any measurements technique at the highest possible lateral resolution for an optical instrument.
The topography shown is a subnanometer (0.3 nm) atomic layer. Courtesy of PTB.

S neox

DIC observation

Differential Interference Contrast (DIC) is used to emphasize very small height features that has no contrast in normal observation. With the use of a Nomarski prism, an interferential image is created resolving sub-nanometer scale structures not visible in brightfield or confocal images.
