3D SENSORS INTEGRATION

Integrable metrology solutions

Sensofar’s integrable metrology 3D sensors
are the result of more than 20 years’ experience
in surface metrology systems.

Integration

Robust and reliable

Production environments are often hostile to metrology equipment: variable conditions, vibrations, aggressive materials, etc. make measurement tasks more difficult. Our integrable 3D sensors have been designed with exactly this in mind. The sealed sensor head keeps out debris and particles. Our optical assembly contains no moving parts, so the sensors stay clean and aligned for a long time.

3D sensors
3D sensors

Compact, light, and orientation independent

Small size and low weight make designing for integration easy. Functional in any orientation, Sensofar sensors can be positioned as the application requires. Cable lengths are up to 20 m. Our sensors are perfectly adaptable for both in-line production and robot-mounted sensing applications.

Our solutions

Sensofar’s 3D Sensors are designed to fulfill the top-notch requirements in QC&QA applications.
Our 3D Sensors range includes versatile systems able to measure
different textures and structures all across varying the surface scale.

Sensofar’s 3D Sensors are designed to fulfill the top-notch requirements in QC&QA applications.
Our 3D Sensors range includes versatile systems able to measure different textures and structures all across varying the surface scale.

Integrable Head S wide

The S wide is designed to measure large areas in one single shot, suited for those applications where speed and shape measurement is the priority.

fringe-projection

FOV (single shot) 34.7 x 29.1 mm

Acquisition time 3 s

Optical resolution 9.35 µm

System noise 1 µm

Integrable Head S neox

The S neox addresses the need for maximum flexibility in an integrable sensor and is thus the most versatile industrial system on the market.

all-technologies-ih

FOV (single shot) > 6.8 x 5.6 mm

Acquisition time 4 s

Optical resolution < 148 nm

System noise < 0.01 nm

Integratable Head S mart

The S mart is the smallest areal confocal sensor on the market. The perfect combination of compact design and versatility profilometer.

technologies-ih-group

FOV (single shot) > 3.4 x 2.8 mm

Acquisition time 7 s

Optical resolution < 177 nm

System noise < 1 nm

Integratable Head S onix

The S onix is an areal interferometer that fits perfectly in industrial environments because of its astonishing resolution and speed.

interferometry-ih

FOV (single shot) > 5.0 x 3.8 mm

Acquisition time 3 s

Optical resolution < 190 nm

System noise < 1 nm

Fringe Projection        Ai Focus Variation        Confocal        Interferometry        Spectroscopic Reflectometry

Our software map

Our software and hardware combined match a full solution. In this software map, it is presented the workflow of measurement: from the programing of the sensor heads on how to acquire the measurements to setting which analysis perform with the results.

Our software and hardware combined match a full solution. In this software map, it is presented the workflow of measurement: from the programing of the sensor heads on how to acquire the measurements to setting which analysis perform with the results.

esquema softwares 3D sensors
SensoPRO
sensopro-logo

The speed of production line demands is matched by SensoPRO: with custom-based plugin data analysis algorithms, specific features will be automatically detected and analyzed, quickly creating a pass/fail report.

co-sensopro-integrable-heads-01-w
SensoVIEW
sensoview-logo

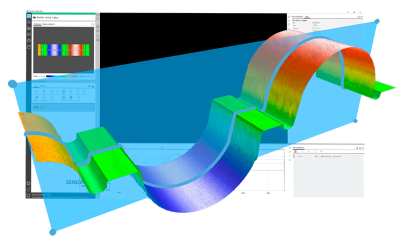

SensoVIEW is the ideal software for a broad range of analysis tasks. It includes a comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements, provides roughness or volume calculations and measures critical dimensions with a set of analysis tools, which can be exported as a report or data set (csv file).

SensoVIEW screen & topo
SDK
sdk-logo

Our Software Development Kit (SDK) is a set of tools that enable remote control of one or even several sensors. It generates and manages communication between the client’s computer and the sensors, in addition to addressing the acquired data to analysis software.

sdk_automation-example_350
