Improving the measurement of thick and thin films with optical profiling techniques

Optische Metrologie
Vizepräsidentin Software, Doktorin der Physik (Optische Technik), Technische Ingenieurin für Telekommunikation, Elektronikingenieurin at Sensofar Metrology | Other articles

Seit 2004 Partnerin bei Sensofar.
Als erfahrene Forschungs- und Entwicklungsspezialistin arbeitet Cristina seit 1996 bei CD6 als F&E-Ingenieurin. Seit der Gründung von Sensofar Tech SL im Jahr 2001 ist sie dort als Softwaremanagerin tätig und seit 2017 Vizepräsidentin der Abteilung Software. Ihre Forschungsinteressen umfassen optische Messtechnik, Oberflächenmesstechnik, Bildverarbeitung und Computerwissenschaften. Seit 2010 entwickelt sie den Einsatz von dreidimensionalen (3D) topographischen Analysen in der Schusswaffenanalyse.

Improving the measurement of thick and thin films with optical profiling techniques full article
Cristina Cadevall1, C. Oriach-Font1, Roger Artigas1, Agustí Pintó1, Ferran Laguarta1
1Universitat Politècnica de Catalunya (UPC) Rambla Sant Nebridi, 10, E-08222 Terrassa, Spain.
Proceedings Volume 6616, Optical Measurement Systems for Industrial Inspection V; 66161Z (2007)
Event: Optical Metrology, 2007, Munich, Germany

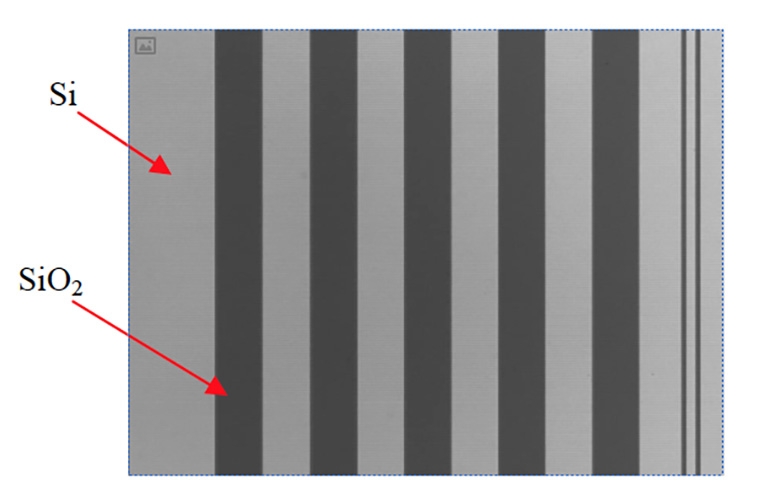

Optical profiling techniques, mainly confocal and white light interferometry, have demonstrated to be suitable techniques for characterization of transparent thick films. Measurements are carried out by vertically scanning the upper and lower film interfaces. Thickness of the layer is determined from the two peaks in the confocal axial response or from the two sets of interference fringes developed during the vertical scan. The 3D topographies of the upper and lower interfaces of the film can also be obtained. Measurements of photoresists or oxide coatings are typical examples of thick film characterization. On the other hand, measurement of thin films is considered to be a very difficult application to carry out with most optical imaging profilers. A film should be considered as thin when the two peaks obtained along the vertical scan become unresolved. We introduce new methods based on confocal techniques, which make it possible to measure sub-micrometric layers on structured samples. These techniques are based on the comparison between the axial responses obtained in areas where the film is present and those in other areas where only the substrate is present. This method has been successfully used for thickness assessment of several samples, such as a set of calibrated Si-SiO2 layers.
