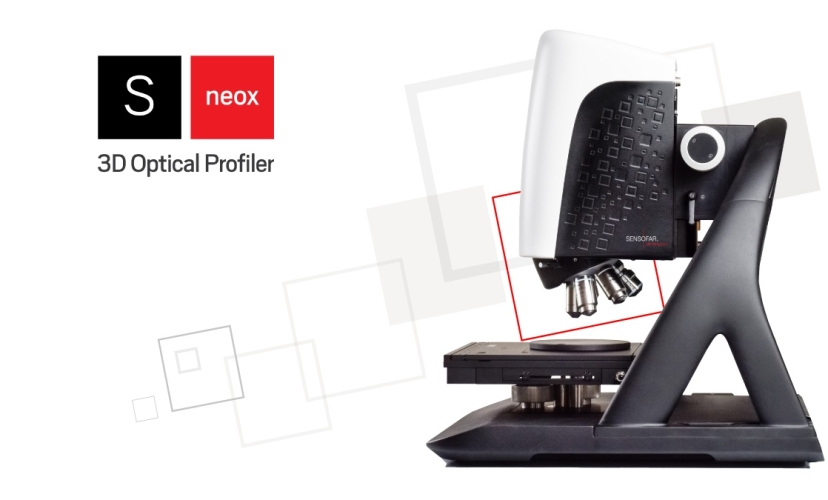

Engineered for speed, new S neox 3D Optical Profiler

Metrology, News, Products

Sensofar Metrology is proud to announce the release of the 5th generation of its flagship optical profiler. The S neox is a high-performance non-contact 3D optical profiler microscope system purposely-designed for sub-nano, nano and micro-scale measurement, with advanced inspection and analysis capabilities.

The new S neox outperforms existing optical 3D profiling microscopes in terms of design, functionality, efficiency and performance. Above all, the most impressive feature to highlight is the speed. Everything is faster with new smart and unique algorithms. Data acquisition is taken at 180 fps. Standard measurement acquisition is 5X faster than before, making the S neox the fastest areal measurement system in the market.

The S neox design has been improved in terms of flexibility, stability and durability required for both R&D and QC laboratories. Our optimized solutions are able to work in QC environments due to their flexibility and easy-to-use interface and can be programmed to work 24/7.  The Sensofar’s 3-in-1 technologies approach found in the S neox sensor head – Confocal, Interferometry, Ai Focus Variation (new) – contributes critically to the versatility of the system and help to minimize undesirable compromises in the data acquisition. The S neox is ideal for all lab environments, without limitations.

The most significant features are:

New Active illumination Focus Variation is an optical technology that has been developed for measuring the shape of large rough surfaces. It has been improved with the use of active illumination to get more reliable focus location even on optically smooth surfaces.

New thin film measurement technique which allows the user to measure the thickness of optically transparent layers quickly, accurately, non-destructively and with no sample preparation. Transparent films from 50 nm to 1.5 μm can be measured in less than 1 second.

Differential Interference Contrast (DIC) has been added to emphasize very small height features which have no contrast in regular observation.

High Dynamic Range (HDR) mitigates reflection and drop-out points on highly reflective surfaces (local slopes and/or different materials).

The S neox comes equipped with a four long-lifetime LED light source and a 6-position motorized nosepiece. There are no moving parts in the sensor head, thus providing for long-term stability, accurate measurement repeatability and a very long lifetime. As in the former S neox, a rotational stage with a Five Axis high-precision motorized rotating module can be attached to the system.

The S neox comes with SensoSCAN 7 which drives the system with a clear, intuitive and user-friendly interface and is coupled with new software SensoVIEW for a broad range of analysis tasks. The most popular surface texture parameters are calculated according to ISO 25178 and ISO 4278.

Automated analysis modules have been created to make all QC procedures easier with SensoPRO. For more powerful and flexible data analysis, SensoMAP, a state-of-the-art surface analysis software based on Mountains® technology is available.

Fore more information, download our brochure .

The new S neox system will be available for demonstration at the upcoming:

Photonics West show in San Francisco, USA (Feb. 5-7, Hall ABCD South, booth #3404)

Laser World of Photonics show in Shanghai, China (Mar. 20-22, Hall W4 booth #4201)

Control show in Stuttgart, Germany (May 7-10, Hall 6, booth #6106)

Eastec show in West Springfield, MA, USA (May 14-16)
