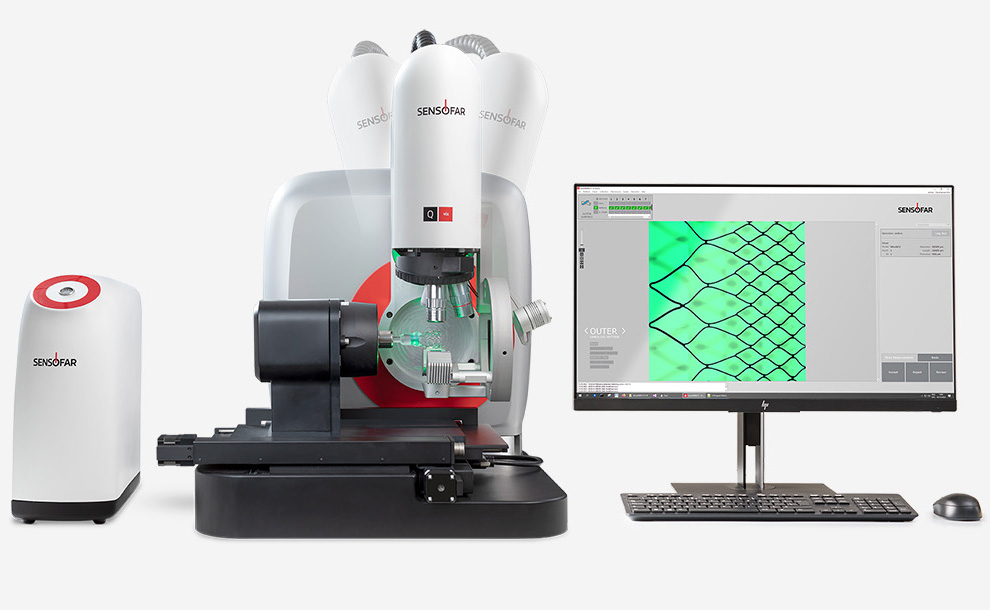

header_q-vix-pivot_specs_complete-system_resp

Measurement modes

Imaging

Q six specifications icon_Screenshot

Screenshot

Q six specifications icon_UnrolledFOV

Unrolled FOV

Q six specifications icon_UnrolledSection

Unrolled section

3D Modes

icon_SurfaceTopography

Surface topography

icon_SurfaceRoughness

Surface roughness

icon_CoatingThickness

Coating thickness

Inspection capabilities

Q vix specifications Outer Surface

Outer surface

Q vix specifications Inner Surface

Inner surface

Q vix specifications Lateral Surface

Lateral surface

Q vix specifications Edges

Edges

Measurable stent

Type Laser cut, braided, welded
Shape Cylindrical, contoured (up to 45deg)
Material Metallic (metal alloys and Nitinol), polymer
OD 1 – 32 mm (up to 40mm with 5X)*
Length Up to 185mm

* Maximum stent OD for on-axis inspection of inner surface at 45 degree head tilt is 17.5mm.

Light sources

Flexible illumination Up to 9 light sources available
Standard illumination TOP white light, BACK green light and two SIDE white lights

Dimensions

Q vix specifications dimensions
Q vix specifications side dimensions

Sensorhead & Controller

Objectives performance

Imaging Objectives
MAG 2X 5X 10X
Numerical Aperture 0.055 0.14 0.28
Working Distance (mm) 34 41 34
Horizontal FOV (mm) 9 3.6 1.8
Spatial sampling (µm)[1] 4.4 1.76 0.88
Optical resolution (µm)[2] 2.77 1.09 0.54
Unrolled acquisition rate (mm2/s)[3] 120 20

1 Pixel size on the imaged surface.   2 L&S: Line and Space (500nm wavelength)
3 Frame rate 3000 fps.

3D Objectives
MAG 10XDI 20XDI 50XDI
Numerical Aperture 0.3 0.4 0.55
Working Distance (mm) 7.4 4.7 3.4
Horizontal FOV (mm) 1.8 0.9 0.36
Spatial sampling (µm)[1] 0.88 0.44 0.18
Optical resolution (µm)[2] 0.51 0.38 0.28
Vertical resolution (nm)[4] 1 1 1

1 Pixel size on the imaged surface.   2 L&S: Line and Space (500nm wavelength)
 4 Vibration isolation table is required.

Computer & Operating System

Computer HP Z220 SFF, HP display 2560×1440 pixels
Computer Dimensions (WxDxH) 338x381x100 mm
Monitor Dimensions (WxDxH) 614x218x534 mm (with stand)
Operating System Windows 10, 64 bits

Data management

Q vix specifications Data management scheme

Depending on the intended use, the Q vix can be operated in three different environments: Development, Quality Assurance (QA) and Production. Each environment has its own databases.
Data is organized in three different categories:
1
System Databases containing User data and System configuration files
2
Stent Inspection Databases containing Stent Model data, Defect libraries and Acquisition, Analysis and Report recipes
3
Inspection Results

icon_GreenLight

530nm

icon_WhiteLight

550nm
