Cutting edge measurement of an insert

案例研究, 微制造业, 工装
| Other articles

Utilis AG 是金属加工行业世界领先的精密工具供应商之一。一百多年来,公司一直致力于开发、制造和分销高质量精密切削刀具,特别是用于微机械、手表和医疗技术等领域的刀具。凭借先进的高端技术和在制造切削刀具方面的深厚专业知识,我们将自己定位为金属切削行业的专家和市场领导者之一。

Everything is possible with the S neox Five Axis. Steep angles and very small cutting-edge measurements of a few micrometers are no longer a problem for 3D optical profiling

Whirling inserts are used to produce threads. The whirling process is complex, that’s why there are many different angles (lead angle, angle of rake, clearance angle) on an insert (Figure 1a). In addition, there are inserts with up to 3 teeth on it. This makes it very difficult the measurement of an insert.
For previous quality assessments, one had to rely on simple optical devices for assessing the dimensional accuracy and on stylus devices for measuring roughness. The informative value of these measurements, however, is very limited. In addition, the parts often had to be destroyed so that the desired size could be measured. In order to constantly improve the quality of our tools, there is a need for a flexible device to measure and assess both critical dimensions and surface roughness of cutting tools.

The purpose of this case study is to measure the cutting-edge radius of an insert with a 3D optical profiler and also extract the roughness parameters along the edge of the cutting tool. A schematic drawing of the insert to be measured is shown in Figure 1b.

cs14 Utilis - cutting edge insert 1
Figure 1.a) Some of the parameters of interest in a cutting tool. b) Drawing of the measured insert. The red line shows the cutting edge profile that is under evaluation in this case study.

The cutting-edge radius is very important for a good tool life expectancy. For this particular application note, we used the S neox Five Axis 3D Optical Profilometer in Focus Variation HDR mode (Sensofar), in conjunction with a 100X Objective magnification, to acquire the cutting edge 3D topography of an insert (Figure 2).

Figure 2. On top we see the 3D topography of a rounded cutting edge measured with 100X Ai Focus Variation HDR. The transversal profile is shown at the bottom and the top-view on the right hand side.

The insert was held as shown in Figure 3  with an elevation angle of 63.5º.

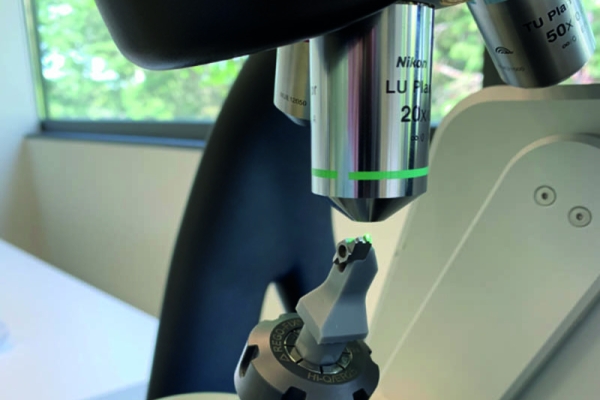

Figure 3. Positioning of the insert under the S neox Five Axis 3D optical profiler

Once the topography was acquired, the data was sent out to the SensoPRO software ‘Edge’ plug-in for automated data analyses. This software module can automatically detect the cutting edge orientation and computes a certain number of profiles that are transversal to the edge. For this particular example, we chose up to 30 profiles, from which the cutting edge radius, among many other parameters listed in Figure 4, were computed.

cs14 Utilis - cutting edge insert 4
Figure 4. List of parameters computed for each profile transversal to the cutting edge. In addition to these parameters, the software also computes roughness (e.g., Ra, Rq or Rz among others) along the cutting edge.

The SensoPRO software allows for visualization of each parameter and provides some statistics on each parameter (i.e., mean value, standard deviation, minimum and maximum). As shown in Figure 5, the average radius of 30 profiles is 5.14 µm with a standard deviation of ±0.35 µm. It is also worth mentioning that the software allows setting a tolerance range and exporting the results in a Pass or Fail Report, in our case, we set a minimum and a maximum cutting edge radius of 4.7 and 5.7 µm, respectively, which can be seen at the bottom plot in Figure 5 (i.e., orange region).

Finally, one last parameter of interest is the roughness at the edge of the cutting tool. This information is provided automatically by the software in the form of many common and standard parameters such as Ra, Rz and Rq, among others. In this particular case, the cutting edge had an Ra of 0.05 µm.

cs14 Utilis - cutting edge insert 5
Figure 5. Outcomes of the SensoPRO ‘Edge’ plug-in . a) List of cutting-tool parameters. b) one out of the 15 transversal profiles with the corresponding cutting edge radius, clearance, and rake angles. c) The out-of-tolerance region (shown in orange) in a plot of cutting edge radius (y-axis) vs. each profile number from 1 to 30 (x-axis). d) Example of a cutting-edge topography with the transversal profiles.

The 3D optical profilometer S neox Five Axis makes it possible to quickly and flexibly obtain the key parameters necessary for the continuous improvement of our tools, such as the cutting edge radius, clearance and rake angles, or even the roughness at the edge.
In this particular case study we successfully measured an average cutting edge radius of 5.14 µm and a roughness Ra value of 0.05 µm at the edge of the cutting tool. This information was easily obtained using the Ai Focus Variation technology, with a 100X objective magnification and with the application-specific software, SensoPRO (‘Edge’ plug-in).

Having three measuring methods present within the same sensorhead (i.e., Confocal, Ai Focus Variation and Interferometry) allow for a very flexible measurement of different measuring tasks on various parts. From very smooth and shiny to heavily textured, rough surfaces: everything is possible with the S neox Five Axis. Steep angles and very small cutting-edge measurements of a few micrometers are no longer a problem for 3D optical profiling.
