Guided system
SensoSCAN
Software drives the systems with its clear and intuitive user-friendly interface.
The user is guided through the 3D environment, delivering a unique user experience.
Sample Navigation
An overview tool helps the user to inspect the sample during measurement preparation, check measurement positions before acquisition as well as assist in the automation procedure. Working with high magnification will be easier, as you will know where you are at every moment.
Auto 3D Function
Selecting 3D Auto function, the SensoSCAN software
automatically determines the correct illumination and the appropriate measurement
range, and then performs the chosen measurement type. A high-quality result can thus be obtained within just a few seconds.
Analysis & Reporting
It is also possible to create analysis templates to apply pre-determined filter and operator configurations to repeated measurements.
And finally, obtain a clear and well-structured report for each measurement, showing the 3D data, a 2D profile and all the ISO parameters.
Automating procedures module
Automated measurements are obtained using the Recipes tool, an easily customizable tool for creating quality control procedures. It is ideal for Quality Control inspection, and it is extremely easy to define procedures for automating measurements with the profile manager tool, sample identification, data exportation and ‘pass or fail’ criteria.
Up to
500 Mpx
500 Mpx
Extended measurements module

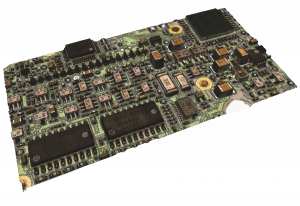

SensoSCAN’s extended measurements module allows the user to easily define the measurement layout on the surface by means of the overview image. The area can be automatically cropped to rectangular, circular or ring areas of interest. Wide areas up to 500 million pixels are possible. Several scanning strategies such us autofocusing on each field, or focus tracking to minimize vertical scanning range are available.
Powerful advanced
analysis software
analysis software
SensoVIEW
SensoVIEW is an ideal software for a broad range of analysis tasks.
Interactive analysis tools
Interactive analysis tools
3D and 2D interactive views provide multiple scaling, display and render options. A comprehensive suite of tools for preliminary examination and analysis of 3D or 2D measurements is provided. Critical dimensions, angles, distances, diameters can be measured and features highlighted with new annotation tools.
Sequential operators
Sequential operators
A comprehensive set of operators provides the opportunity to retouch data points, restore non-measurable data, remove form (plane, sphere, polynomial), apply a range of filters and/or generate alternative layers by cropping, subtracting or extracting a profile. It is also possible to create analysis templates to apply pre-determined filter and operator configurations to repetitive measurements.
The most complete analysis suite
SensoPRO
Advanced software package optionally available.
It has never been so easy to perform fast quality control in a production line. Thanks to SensoPRO, the operator in the production line only needs to load the sample and follow guided instructions. Plug-in-based data analysis algorithms provide a high degree of flexibility. New modules can be easily customized to other industry needs.
Advanced
reporting software
reporting software
SensoMAP
Advanced software package optionally available.
SensoMAP, based on Mountains technology from Digital Surf, is an extremely powerful tool for analysis and reporting. SensoMAP software is completely modularly adaptable to customer requirements. Two levels (standard and premium) and several modules (2D, 3D or 4D modules, Advanced Contour, Grains & Particles, Statistics and Stitching) are available.
SensoMAP modules
| Advanced 2D surface texture | Studies, parameters and filters for advanced 2D profile analysis |
| Advanced 3D surface texture | Studies, parameters and filters for advanced 3D surface analysis |
| Contour | Fast geometric dimensioning of component contours |
| Advanced contour | Comprehensive form deviation analysis with tolerancing |
| Grains and particles | Study isolated surface features |
| Colocalization | Combine surface data obtained by imaging and metrology instruments of different types |
| 4D series | Visualize and analyze surface evolution |
| Statistics | Automated statistical analysis of static and dynamic measurement data populations |
| 3D Fourier | Use advanced FFT-based tools to analyze process-surface interactions and denoise surfaces |
| 2D automotive | Assess functional performance with parameters developed by the automotive industry |
