S lynx - Compact 3D Surface Profiler

#mk-edge-slider-58d8b1c150618 { background-color: #000000; }

Technologies

icon_Confocal_rgb_80x80

Confocal

icon_Interferometry_rgb_80x80

Interferometric
VSI

icon_FocusVariation_rgb_80x80

Focus Variation

.full-width-58d8b1c15168b { min-height:100px; padding:10px 0 10px; margin-bottom:0px; } #background-layer--58d8b1c15168b { background-image:url(http://sensofar.com/wp-content/uploads/2016/02/fonsTechnologies.jpg); background-position:center top; background-repeat:no-repeat; ; }

Light Source

icon_Light

550nm

.full-width-58d8b1c154ecc { min-height:100px; padding:10px 0 10px; margin-bottom:0px; } #background-layer--58d8b1c154ecc { background-image:url(http://sensofar.com/wp-content/uploads/2016/02/fonsLight.jpg); background-position:center top; background-repeat:no-repeat; ; }

Dimensions

photoProduct_SlynxDimensions
.full-width-58d8b1c156d27 { min-height:100px; padding:10px 0 10px; margin-bottom:0px; } #background-layer--58d8b1c156d27 { background-image:url(http://sensofar.com/wp-content/uploads/2016/02/fonsDimensions.jpg); background-position:center top; background-repeat:no-repeat; ; }

Objectives performance

Brightfield
tableObj_BF_NotSneox

Confocal

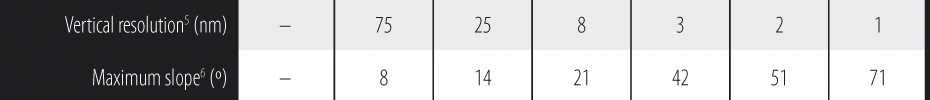

tableObj_Confocal_Z_SlynxOnly

Focus variation

tableObj_FV

Other objectives available (Confocal / Focus Variation):
Water Immersion | Super Long Working Distance | Extra Long Working Distance | Collar Ring Depth Focusing Correction

1 Maximum field of view with 2/3” camera and 0.5X optics.   2 Pixel size on the surface.   3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for white LED. Spatial sampling could limit the optical resolution for interferometric objectives.   4 For brightfield objectives, 21 scanning planes (confocal).   5 System noise measured as the difference between two consecutive measurements of a calibration mirror placed perpendicular to the optical axis.   6 On smooth surfaces, up to 86º on rough surfaces.

Interferometric
tableObj_Int_NotSneoxNotSonix

VSI

tableObj_Int_Z_SlynxOnly

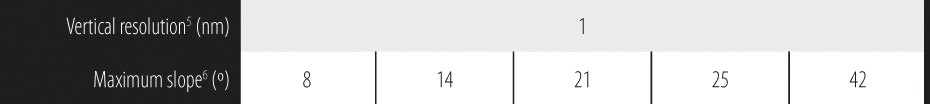

1 Maximum field of view with 2/3” camera and 0.5X optics.   2 Pixel size on the surface.   3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for white LED. Spatial sampling could limit the optical resolution for interferometric objectives.   4 For interferometric objectives, 10 µm scanning range.   5 System noise measured as the difference between two consecutive measurements of a calibration mirror placed perpendicular to the optical axis.   6 On smooth surfaces, up to 86º on rough surfaces.

#mk-tabs-58d8b1c1597d4 .mk-tabs-tabs li.ui-tabs-active a, #mk-tabs-58d8b1c1597d4 .mk-tabs-panes, #mk-tabs-58d8b1c1597d4 .mk-fancy-title span{ background-color:#ffffff; }
.full-width-58d8b1c1588b9 { min-height:100px; padding:10px 0 10px; margin-bottom:0px; } #background-layer--58d8b1c1588b9 { background-image:url(http://www.sensofar.com/wp-content/uploads/2016/02/fonsObjectives.jpg); background-position:center top; background-repeat:repeat; ; }

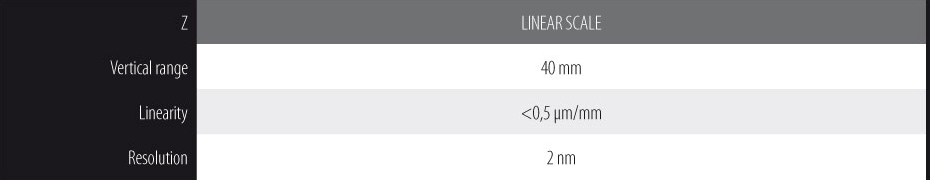

Stage performance

tableStage_Z_SneoxOnly
.full-width-58d8b1c15e5ab { min-height:100px; padding:10px 0 10px; margin-bottom:0px; } #background-layer--58d8b1c15e5ab { background-image:url(http://sensofar.com/wp-content/uploads/2016/02/fonsStages.jpg); background-position:center top; background-repeat:repeat; ; }

Computer & Operating system

photoProduct_SlynxComputerDimensions
Computer HP Z230SSF
Screen HP27i 2560×1440 px
Operating System Windows 8, 64 bits
