S mart & S onixIn-line 3D Surface Sensors

.full-width-5ade81f057f39 { min-height:610px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f057f39 { background-image:url(https://www.sensofar.com/wp-content/uploads/2017/06/slider_met_sensors_specs1.jpg); background-position:center bottom; background-repeat:no-repeat; ; }

Technologies

S mart
icon_Confocal_rgb_128x128

Confocal

icon_Interferometry_rgb_128x128

Interferometry
VSI

icon_FocusVariation_rgb_128x128

Focus Variation

S onix
icon_Interferometry_rgb_128x128

Interferometry
VSI

#mk-tabs-5ade81f058a46 .mk-tabs-tabs li.ui-tabs-active a, #mk-tabs-5ade81f058a46 .mk-tabs-panes, #mk-tabs-5ade81f058a46 .mk-fancy-title span{ background-color:#ffffff; }
.full-width-5ade81f058510 { min-height:550px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f058510 { background-image:url(https://www.sensofar.com/wp-content/uploads/2016/05/technologiesFons.jpg); background-position:center top; background-repeat:no-repeat; ; }

Light Source

icon_Lightsource
.full-width-5ade81f05d115 { min-height:330px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f05d115 { background-image:url(https://www.sensofar.com/wp-content/uploads/2016/05/lightsourceFons.jpg); background-position:center top; background-repeat:no-repeat; ; }

Dimensions

S mart
photoProduct_SmartSensorhead
photoProduct_SmartControllerDimensions
S onix
photoProduct_SonixSensorheadDimensions
photoProduct_SonixControllerDimensions
#mk-tabs-5ade81f05e832 .mk-tabs-tabs li.ui-tabs-active a, #mk-tabs-5ade81f05e832 .mk-tabs-panes, #mk-tabs-5ade81f05e832 .mk-fancy-title span{ background-color:#ffffff; }
.full-width-5ade81f05e3ea { min-height:810px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f05e3ea { background-image:url(https://www.sensofar.com/wp-content/uploads/2016/05/dimensionsFons.jpg); background-position:center top; background-repeat:no-repeat; ; }

Objective performance

S mart

Brightfield

tableObj_BF_NotSneox

Confocal

tableObj_Confocal_Z_NotSlynx

Focus Variation

tableObj_FV

Other objectives available:  Water Immersion | Super Long Working Distance | Extra Long Working Distance | Collar Ring Depth Focusing Correction

1 Maximum field of view with 2/3” camera and 0.5X optics.   2 Pixel size on the surface.   3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for blue LED.   4 For brightfield objectives, 21 scanning planes (confocal).   5 System noise measured as the difference between two consecutive measures on a calibration mirror placed perpendicular to the optical axis.   6 On smooth surfaces, up to 86º on rough surfaces.

Interferometric

tableObj_Int_NotSneoxNotSonix

VSI

tableObj_IntVSI_Z_SmartOnly

Other objectives available:  Variable reflectance | Michelson | Mirau | Linnik

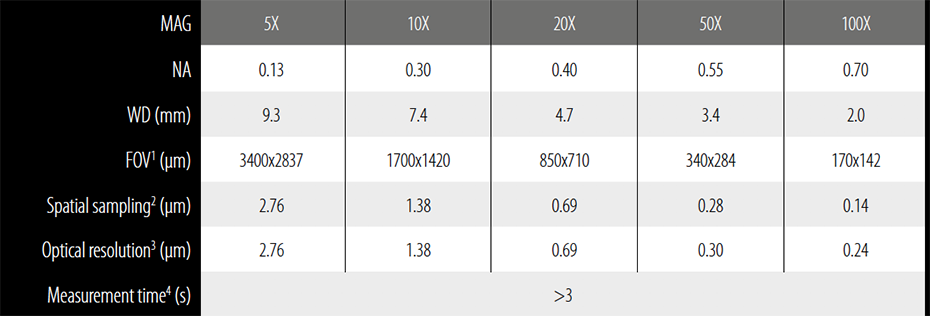

1 Maximum field of view with 2/3” camera and 0.5X optics.   2 Pixel size on the surface.   3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for blue LED.   4 For interferometric objectives, 10 µm scanning range.   5 System noise measured as the difference between two consecutive measurements on a calibration mirror placed perpendicular to the optical axis.   6 On smooth surfaces, up to 86º on rough surfaces.

S onix

Interferometric

tableObj_Int_SonixOnly

VSI

tableObj_IntVSI_Z_SonixOnly

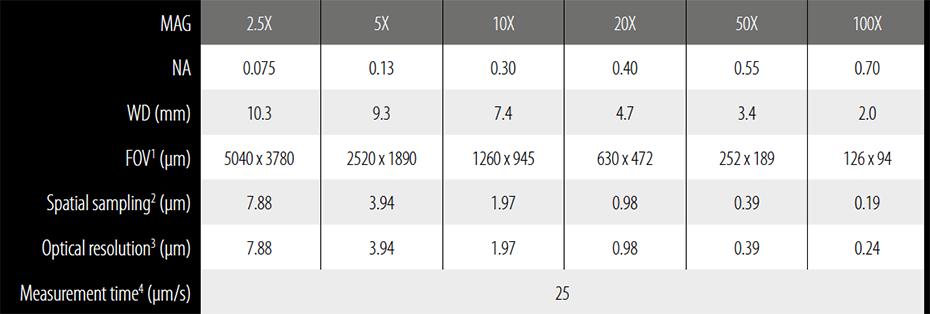

1 Maximum field of view with 1/3” camera and 0.375X optics. 2 Pixel size on the surface. 3 L&S: Line and Space, half of the diffraction limit according to the Rayleigh criterion. Values for white LED. Spatial sampling could limit the optical resolution. 4 Measurement speed 1X. 5 System noise measured as the difference between two consecutive measurements of a callibration mirror placed perpendicular to the optical axis. 6 On smooth surfaces.

#mk-tabs-5ade81f062e39 .mk-tabs-tabs li.ui-tabs-active a, #mk-tabs-5ade81f062e39 .mk-tabs-panes, #mk-tabs-5ade81f062e39 .mk-fancy-title span{ background-color:#ffffff; }
.full-width-5ade81f062a40 { min-height:100px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f062a40 { background-image:url(https://www.sensofar.com/wp-content/uploads/2016/05/objectivesFons.jpg); background-position:center top; background-repeat:no-repeat; ; }

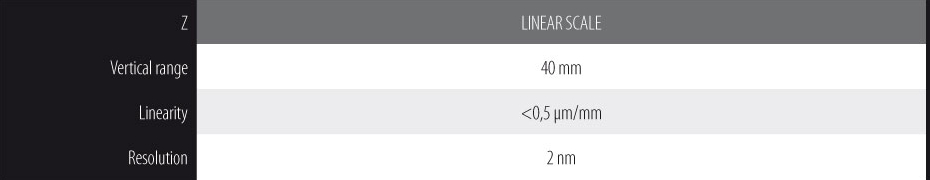

Z Stage performance

tableStage_Z_NotSneox
.full-width-5ade81f069958 { min-height:400px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f069958 { background-image:url(https://www.sensofar.com/wp-content/uploads/2016/05/stage.jpg); background-position:center top; background-repeat:no-repeat; ; }

Software

S mart
tableSoftware_Smart
S onix
tableSoftware_Sonix
#mk-tabs-5ade81f06adce .mk-tabs-tabs li.ui-tabs-active a, #mk-tabs-5ade81f06adce .mk-tabs-panes, #mk-tabs-5ade81f06adce .mk-fancy-title span{ background-color:#ffffff; }
.full-width-5ade81f06a963 { min-height:500px; padding:0px 0 0px; margin-bottom:0px; } #background-layer--5ade81f06a963 { background-image:url(https://www.sensofar.com/wp-content/uploads/2016/05/software.jpg); background-position:center top; background-repeat:no-repeat; ; }

Computer & Operating system

S mart
photoProduct_SMartComputerDimensions
Computer HP Z230SSF with 2560×1440 px HP27i Display
Operating System Microsoft Windows 10, 64-bit
S onix
photoProduct_SonixComputerDimensions
Computer HP Z230SSF with 1920×1080 px HP23i Display
Operating System Microsoft Windows 10, 64-bit
